Thermal Regulating & Monitoring

The Stego 01011.0-31 DCT 010 series electronic thermostat with external sensor that can be positioned freely anywhere in the control cabinet for precise temperature measurements. This designed to control DC powered devices with high capacities in control and switch cabinets such as heaters, filter fans and signalling devices.

• Contact Type: Normally Open (NO)
• Setting Rang: 14 F to 122 F
• Switching Capacity : DC 13 A (Relay Output)
• 35mm DIN Rail Mountable

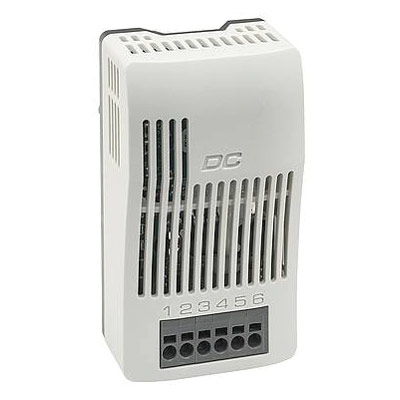

The Stego 01010.0-10 DCM 010 series switch module/relay is used to control DC powered devices with high capacities in control and switch cabinets.

• Contact Type: Normally Open (NO)
• Switching Capacity : DC 13 A (Relay Output)
• 35mm DIN Rail Mountable

The FLZ series of twin thermostats integrates two independently switchable thermostats. They are available with N.C./N.O., N.C./N.C., and N.O./N.O. contacts.

• Dual Adjustable Thermostat
• Setting Range (NC): 0-60 C
  Setting Range (NC): 0-60 C

The FLZ series of twin thermostats integrates two independently switchable thermostats. They are available with N.C./N.O., N.C./N.C., and N.O./N.O. contacts.

• Dual Adjustable Thermostat
• Setting Range (NC): 32-140 F
  Setting Range (NC): 32-140 F

This mechanical bi-metallic thermostat is easily installed on a 35mm mounting rail. Dual functions as (NC) contact normally closed, or (NO) contact normally open.

• Dual Adjustable Thermostat
• Setting Range (NC): 30-140 F
  Setting Range (NO): 30-140 F

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment.

• Dual AdjustableThermostat
• Setting Range (NC): -10-50 C
  Setting Range (NO): 20-80 C

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment.

• Dual AdjustableThermostat
• Setting Range (NC): 0-60 C
  Setting Range (NO): 0-60 C

The FLZ series of twin thermostats integrates two independently switchable thermostats. They are available with N.C./N.O., N.C./N.C., and N.O./N.O. contacts.

• Dual Adjustable Thermostat
• Setting Range (NC): 0-60 C
  Setting Range (NO): 0-60 C

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment.

• Dual AdjustableThermostat
• Setting Range (NC): 14-122 F
  Setting Range (NO): 68-176 F

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment.

• Dual AdjustableThermostat
• Setting Range (NC): 32-140 F
  Setting Range (NO): 32-140 F

The FLZ series of twin thermostats integrates two independently switchable thermostats. They are available with N.C./N.O., N.C./N.C., and N.O./N.O. contacts.

• Dual Adjustable Thermostat
• Setting Range (NC): 32-140 F
  Setting Range (NO): 32-140 F

The SKTD series of twin thermostats integrates two independently switchable thermostats. They are available with N.C./N.O., N.C./N.C., and N.O./N.O. contacts.

• Dual Adjustable Thermostat
• Setting Range (NC): 32-140 F
  Setting Range (NO): 32-140 F
