Thermal Regulating & Monitoring

The Stego DCF 010 series hygrostat with integrated switch module is used to control heating and cooling equipment, filter fans or signal devices through the relay. The hygrostat measures the relative humidity and can switch a signal current via an internal relay. The external sensor can be positioned freely anywhere in the control cabinet for precise measurement of the atmospheric humidity.

• Electronic Adjustable Hygrostat
• Humidity Setting: 40-90% RH
  Temperature Setting: +41 �F (+5 �C) pre-set
• Operating Voltage: 20-56 VDC
• Mounting: DIN Rail

The Stego DCF 010 series hygrostat with integrated switch module is used to control heating and cooling equipment, filter fans or signal devices through the relay. The hygrostat measures the relative humidity and can switch a signal current via an internal relay. The external sensor can be positioned freely anywhere in the control cabinet for precise measurement of the atmospheric humidity.

• Electronic Adjustable Hygrostat
• Humidity Setting: 40-90% RH
  Temperature Setting: +41 �F (+5 �C) pre-set
• Operating Voltage: 20-56 VDC
• Mounting: DIN Rail

The Stego EFR 012 series hygrostat senses the relative humidity in an enclosure and turns on a heater at the set point, helping prevent the formation of condensation in the enclosure.

• Electronic Adjustable Hygrostat
• Humidity Setting: 40-90% RH
• Operating Voltage: 230 VAC
• Mounting: DIN Rail

The Stego EFR 012 series hygrostat senses the relative humidity in an enclosure and turns on a heater at the set point, helping prevent the formation of condensation in the enclosure.

• Electronic Fixed Hygrostat
• Humidity Setting: 65% RH
• Operating Voltage: 120 VAC
• Mounting: DIN Rail

The Stego EFR 012 series hygrostat senses the relative humidity in an enclosure and turns on a heater at the set point, helping prevent the formation of condensation in the enclosure.

• Electronic Fixed Hygrostat
• Humidity Setting: 65% RH
• Operating Voltage: 230 VAC
• Mounting: DIN Rail

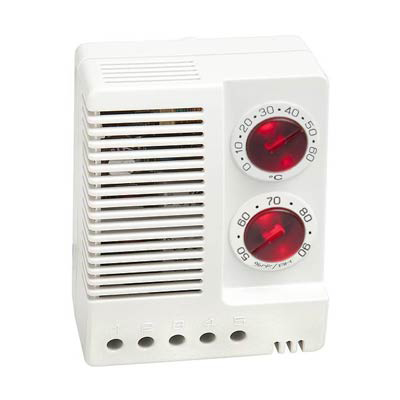

The Stego ETF 012 series electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world.

• Temperature Setting: 0-60 C
  Humidity Setting: 50 to 90 % RH
• Operating Voltage: 100-240 VAC
• Mounting: DIN Rail

The Stego ETF 012 series electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world.

• Temperature Setting: 0-60 C
  Humidity Setting: 50 to 90 % RH
• Operating Voltage: 24-48 VDC
• Mounting: DIN Rail

The Stego ETF 012 series electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world.

• Temperature Setting: 0-60 C
  Humidity Setting: 50 to 90 % RH
• Operating Voltage: 100-240 VAC
• Mounting: DIN Rail

The Stego ETF 012 series electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world.

• Temperature Setting: 0-60 C
  Humidity Setting: 50 to 90 % RH
• Operating Voltage: 24-48 VDC
• Mounting: DIN Rail

The Stego ETF 012 series electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world.

• Temperature Setting: 32-140 F
  Humidity Setting: 50 to 90 % RH
• Operating Voltage: 100-240 VAC
• Mounting: DIN Rail

The Stego ETF 012 series electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world.

• Temperature Setting: 32-140 F
  Humidity Setting: 50 to 90 % RH
• Operating Voltage: 100-240 VAC
• Mounting: DIN Rail

Designed to regulate air temperature in enclosures and operate with the Thermoelectric Coolers. This electronic thermostat has a set point range of 14� to 176�F and is easily installed on 35 mm mounting rail.

• Electronic Adjustable Thermostat
• Setting Range (NC): 14-176 F
  Setting Range (NO): 14-176 F
